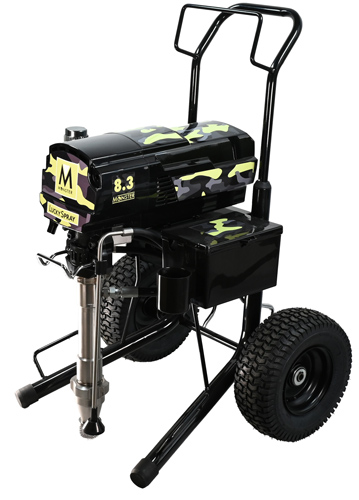

The Giga-MONSTER
Maximum power and robustness
- Unbeatable for spray filler, bitumen and dispersion as well as very large objects
- Extremely quiet brushless brushless X-trem motor enables low fuse protection and power cable extensions
- Constant spray pressure and precise spray pattern thanks to electronic pressure control
- Large LuckySpray High Performance underpump with rotating sealing packings and XXL suction valve easily sucks up highly viscous materials
- Longlife pistons and XXL valves with special balls
- Reduction of nozzle blockages thanks to high-pressure filter
- Large high-pressure filter with Easy in/out filter insert
- Large and robust heavy-duty relief valve
- Digital display
- Robust trolley with large wheels for easy transport
- Toolbox for storing accessories and tools
- 48 h express repair
Technical data
- Designed for very large objects and spray filler
- Max. delivery 8.3 l/min.
- Max. tip size 0.045″
- M10 reverse spray system compatible with Graco RAC X
- Weight 56 / 61 kg
- Hose length max. 90 m NW 6 / 1/4″ or 30 m NW 13 1/2″
- Hose connection: 1/2 "a and 3/8 "a
- Maximum pressure 23 MPa (230 bar)
- Motor power 4.500 watts brushless
- 230 Volt / 50 Hz
- Cable length 2 m
Scope of delivery
- Spray set: 15 m HD hose NW 13 1/2″, 2 m NW 10 3/8″, 501 HD X-trem gun, 523/543 M10 nozzle, 50 cm nozzle extension
- Variant PRO = with integrated hose reel for even more convenient working
Order no. 848345STD or 848345PRO with hose reel
