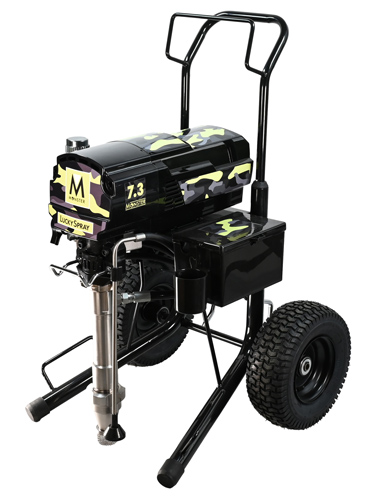

The Mega-MONSTER.
Maximum power and robustness
- Ideal for spray filler, bitumen and paints
- Extremely quiet brushless brushless X-trem motor enables low fuse protection and power cable extensions
- Constant spray pressure and precise spray pattern thanks to electronic pressure control
- Large LuckySpray High Performance underpump with rotating sealing packings and XXL suction valve easily sucks up highly viscous materials
- Longlife pistons and XXL valves with special balls
- Reduction of nozzle blockages thanks to high-pressure filter
- Large high-pressure filter with Easy in/out filter insert
- Large and robust heavy-duty relief valve
- Digital display
- Robust trolley with large wheels for easy transport
- Toolbox for storing accessories and tools
- 48 h express repair
Technical data
- Designed for large objects and spray stucco
- Max. delivery 7.3 l/min.
- Max. tip size 0.043″
- M10 Ultra Reverse Spray System compatible with Graco RAC X
- Weight 56 / 61 kg
- Hose length max. 90 m NW 6 / 1/4″ or 30 m NW 13 1/2″
- Hose connection: 1/2 "a and 3/8 "a
- Maximum pressure 23 MPa (230 bar)
- Motor power 4,000 watts brushless
- 230 Volt / 50 Hz
- Cable length 2 m
Scope of delivery
- Spray set: 15m HD hose NW 13 1/2″, 2m NW 10 3/8″, 501 HD X-trem spray gun, 523/541 M10 nozzle, 50cm nozzle extension

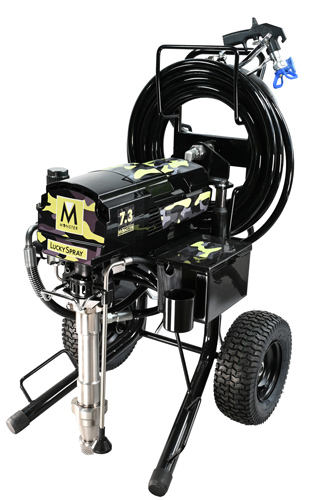

- PRO version = with integrated hose reel for up to 60 m of HD hose NW 6 1/4″
Order no. 847343STD or 847343PRO with hose reel
